Jet engine compressor double blade segment

Designed in Siemens NX6

Jet engine compressor segment
Design of compressor segment consisting of two blades. It is fuel injection segment with fuel spray nozzles. Design was made based on paper documentation and measuring the existing segment in MTI CMM laboratory.

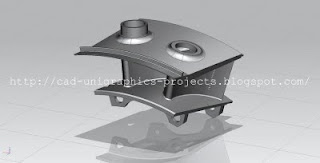

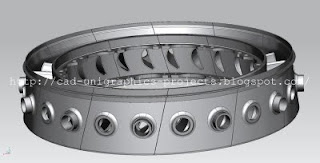

First image is showing part of segment in rendered view. Images below show whole assembly of segment, segment in work view, and segment alone in rendered view.

Jet engine compressor segment


Jet engine compressor segment part, work view

Jet engine compressor segment part, rendered view
