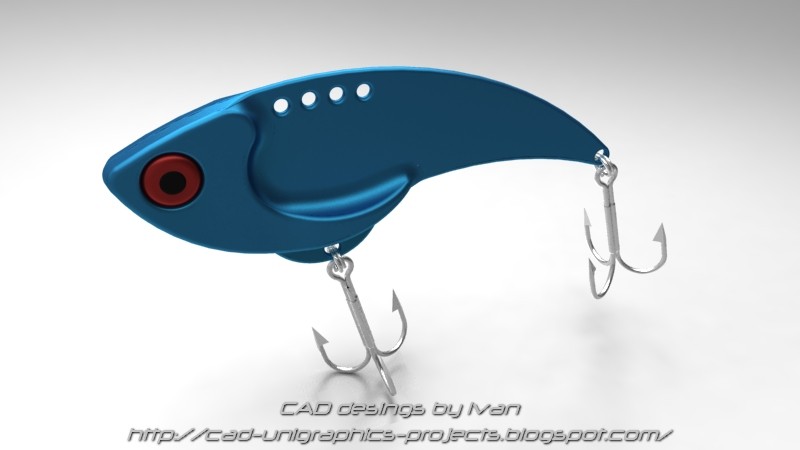

Blade bite Binsky, fishing lure 3D model (free CAD download file)

Designed in Siemens NX6

I saw this beautiful lure and I couldn't resist to make a model. This is NOT the original design! This is just my 3D interpretation of images of original design, I do not guarantee that you will catch anything with lure made from my file!

Fishing hooks (free CAD download file)

Designed in Siemens NX6

These are models of most popular fishing hooks, two simple hooks, two double hooks and triple hook.
Hooks are designed as either single hooks—a single eye, shank and point; double hooks—a single eye merged with two shanks and points; or treble--a single eye merged with three shanks and three evenly spaced points.

Fishing lure model

Designed in Siemens NX6

This lure design is ordered on one of freelance sites. Red lines are IGES file lure mold details I got as order details. This model took me less then two hours to build, most of time I spend on optimizing splines to give smooth surface.

Fishing lures mold models (free CAD download file)

Designed in Siemens NX

fishing lures

Fishing lures models designed for making molds. Models are designed by measuring existing lure. There is two models designed with differences on fin area. i made this design for a friend who is a passionate fisherman, and he is using lures made in this mold every time he go fishing.
