Jet engine compressor fin with horizontal reinforcement

Designed in Siemens NX

fin in work view
The project was made for the Serbian Army at the Military Technical Institute. Fin was designed based on paper documentation and the points were obtained by measuring the existing wings in MTI CMM labaratory. Special attention was paid to the accuracy of shape and position of the control profile, position and shape of the horizontal reinforcement, and the shape of wing root.

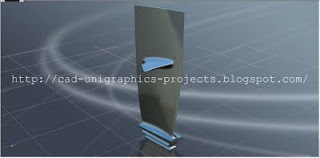

First image shows a part in the design process, on the second is rendered view of the finished part. In the third image is the view of the assembly of the fins.


fin

fins in assembly
